Geyer Hellas AE. Charging Stations

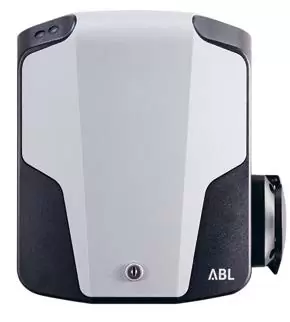

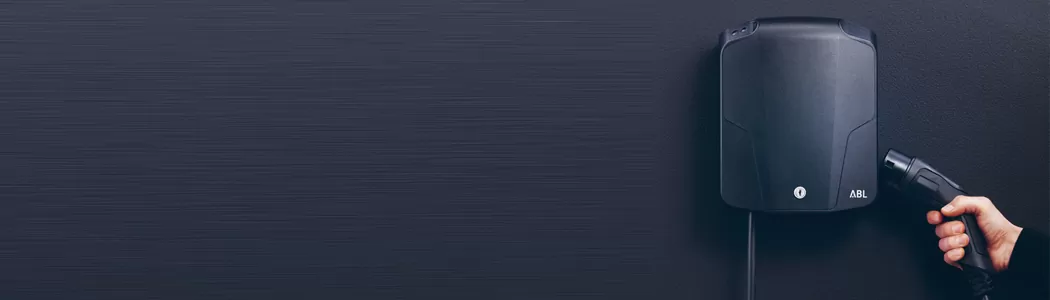

Wallbox eMH1

Plug & Charge – simple solution

On December the 3th 2018, the ADAC, Europe‘s largest automobile association with around 20 million members, published the results of its wallbox product test. Twelve wallboxes from international manufacturers with charging capacities from 3.7 to 22 kW were tested. Reliability during charging, safety and ease of use were put to the test in this comparison of the different systems.

The Wallbox eMH1 by ABL received top ratings for all three criteria. The report also emphasized as a positive that the Wallbox eMH1 does not require additional residual current protection. The wallbox is pre-installed ready for connection, so there are no hidden additional costs. All electric vehicles tested by ADAC were able to be charged easily at the Wallbox eMH1. The result is unambiguous: With a top mark of 1.0, the Wallbox eMH1 by ABL is the winner.

Wallbox eMH1

with charging socket

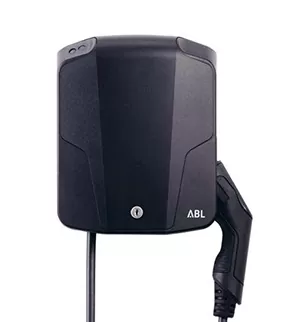

Wallbox eMH1

with charging cable

All Wallboxes eMH1 have:

DC residual current monitoring
RCCB type A
Phase current measurement
Welding Detection
Integrated temperature monitoring

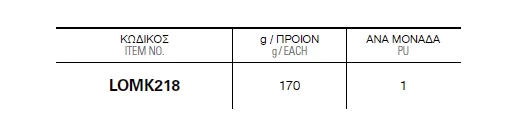

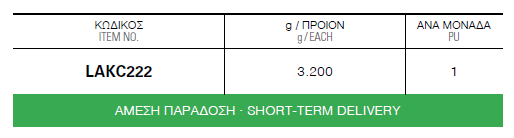

Adjustable charging current via configuration software and LOMK218

Wallbox eMH1 Basic

The easy solution

The new addition to the eMH1 line – the Wallbox eMH1 Basic. Like all other ABL wallboxes, the new addition features integrated DC fault current detection. To connect the Wallbox eMH1 Basic, all you need is a type A RCCB.

Alternatively, you can opt for the preconfigured, ready-to-use Wallbox eMH1, which topped 11 other wallboxes tested by German Automobile Association (ADAC).

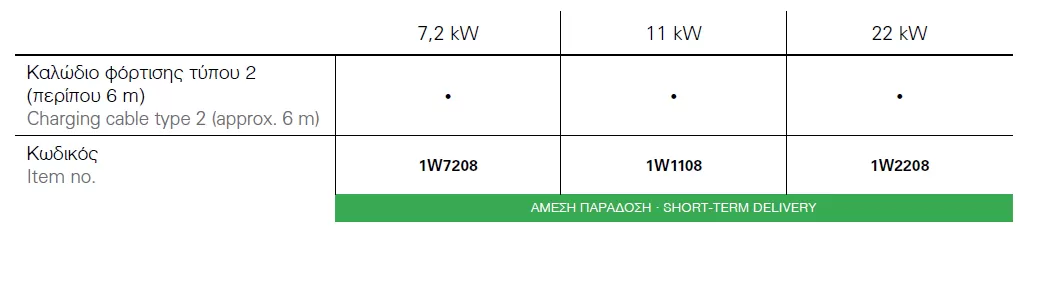

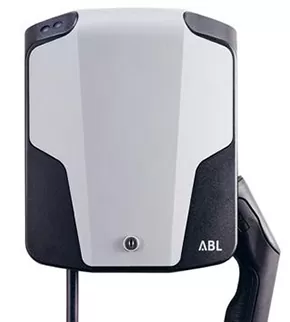

Wallbox eMH1 Basic

with charging cable

All Wallbox eMH1 Basic have:

DC residual current monitoring
Welding Detection
Phase current measurement (just 1W2208)
integrated temperature monitoring
adjustable charging current via configuration software and LOMK218

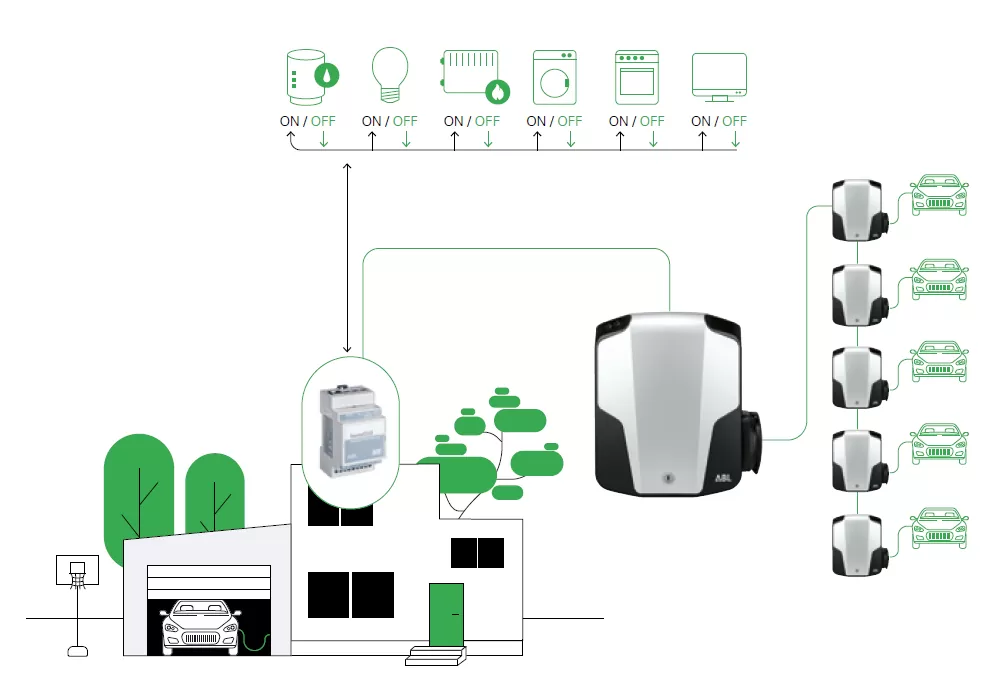

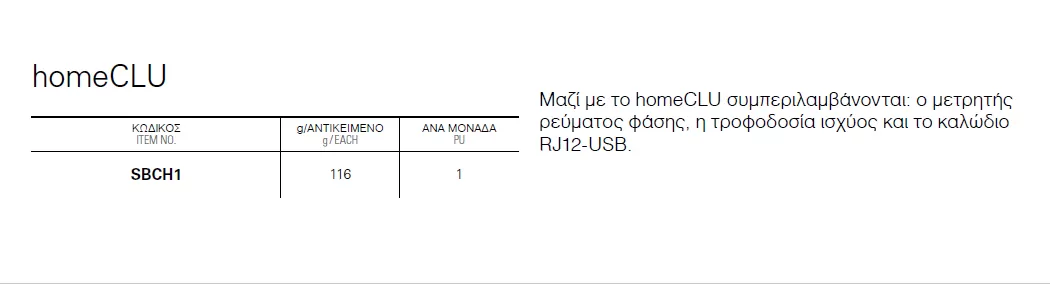

homeCLU

The intelligent load management for your home

Adjusts the maximum charging power of the wallbox to the power consumption at home
Avoids the peak loads by intelligent control of the charging current
Controlling of up to 6 wallboxes eMH1 is possible
Max. current power up to 63 A

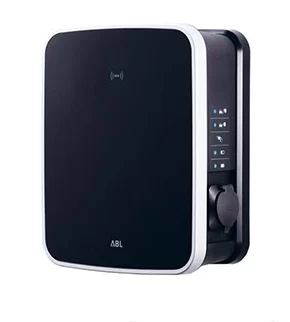

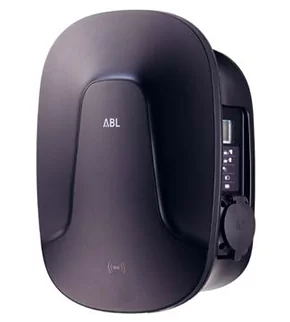

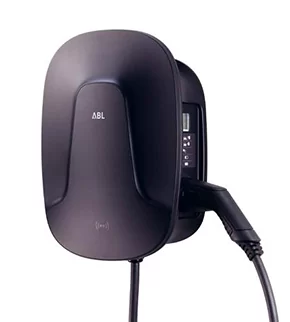

Wallbox eMH2

Future in a box

Our Wallbox eMH2 is the smart charging solution for the private and semi-public sector with an attractive design. Its translucent front communicates the states of charge via colored illuminated pictograms. Without additional accessories, each charging cable can be compactly wound around the housing. Fast and secure access is guaranteed by the integrated RFID module.

Our wallboxes are serially protected with a type A RCCB and DC residual current monitoring. An additional type B RCCB is not required. In addition, the integrated energy meter can be viewed at any time via the side viewing window. After all, every Wallbox eMH2 is prepared for use in the master-slave system.

Wallbox eMH2

with charging socket

Wallbox eMH2

with charging cable

All Wallbox eMH2 have:

RFID*
Energy meter
DC residual current monitoring
RCCB type A
Phase current measurement
Welding Detection
integrated temperature monitoring
adjustable charging current via configuration software

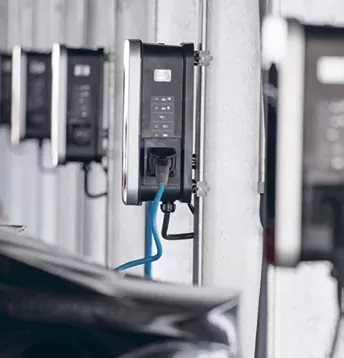

Wallbox eMH3

Double power

Our Wallbox eMH3 impresses with its clear-cut and smart design. You can choose between the single wallbox with one charging point or the twin wallbox with two charging points and a charging capacity up to 44 kW. Additional security is provided by our internal temperature control, which automatically limits charging current, as well as integrated electronic overcurrent protection. The permanently integrated RFID module can be activated at any time via software.

Due to the standard equipment with FI type A and DC residual current monitoring, the wallbox is always pre-installed for the installer ready to use. The communication of the wallboxes with a backend via OCPP 1.5 and OCPP 1.6 can be optionally integrated. With the eMH3 Wallbox, loads can be controlled and, in conjunction with a backend, billing by kWh can be carried out accurately. We also offer the Wallbox eMH3 in compliance with German calibration law.

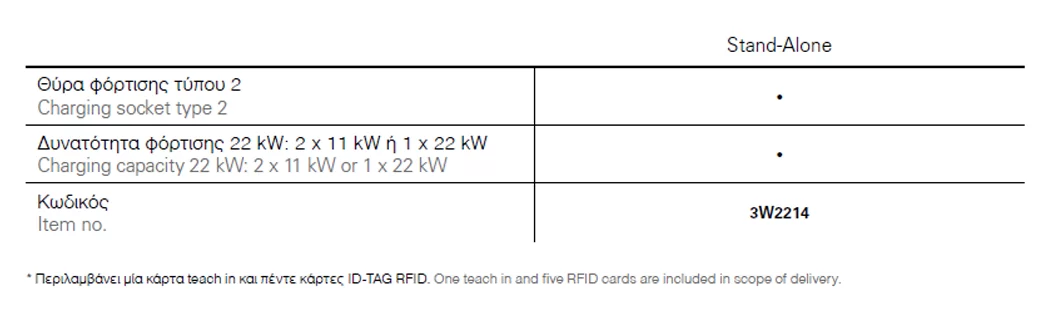

eMH3 Twin Stand-Alone

with two charging sockets

All Wallboxes eMH3 Twin Stand-Alone have:

Load management CCMS
RFID*
DC residual current monitoring
RCCB type A
Phase current measurement
Welding Detection
integrated temperature monitoring
adjustable charging current via configuration software

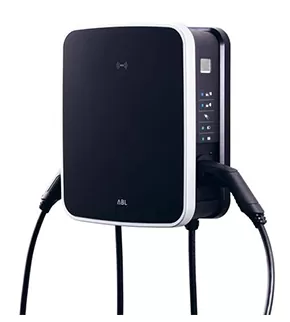

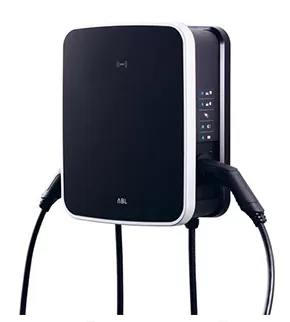

Wallbox eMH3 Twin

with two charging sockets

Wallbox eMH3 Twin

with two charging cables

All Wallboxes eMH3 Twin have:

Energy meter
Load management CCMS
RFID*
DC residual current monitoring
RCCB type A
Phase current measurement
Welding Detection
integrated temperature monitoring
adjustable charging current via configuration software

Wallbox eMH3 Twin+

with two charging sockets

Wallbox eMH3 Twin+

with two charging cables

All Wallboxes eMH3 Twin have:

Logging Gateway
Energy meter
Load management CCMS
RFID*
DC residual current monitoring
RCCB type A
Phase current measurement
Welding Detection
integrated temperature monitoring
adjustable charging current via configuration software
Charging capacity 22 kW: 2 x 11 kW or 1 x 22 kW

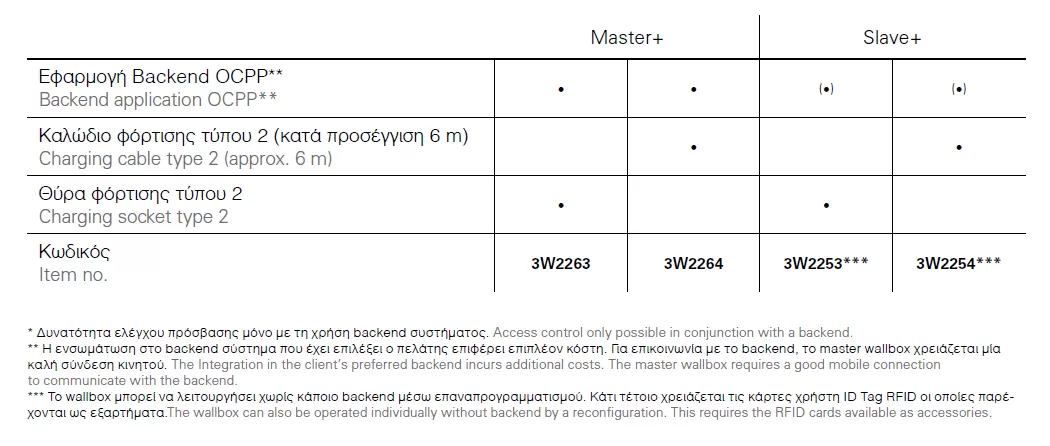

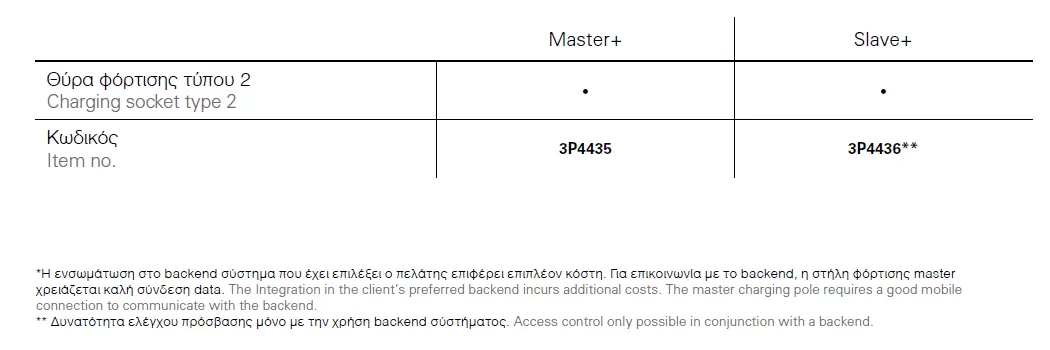

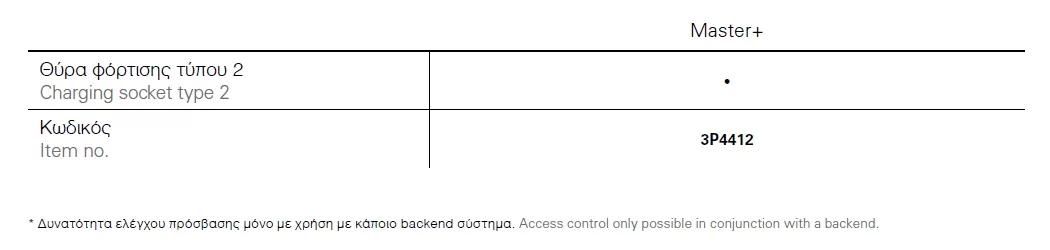

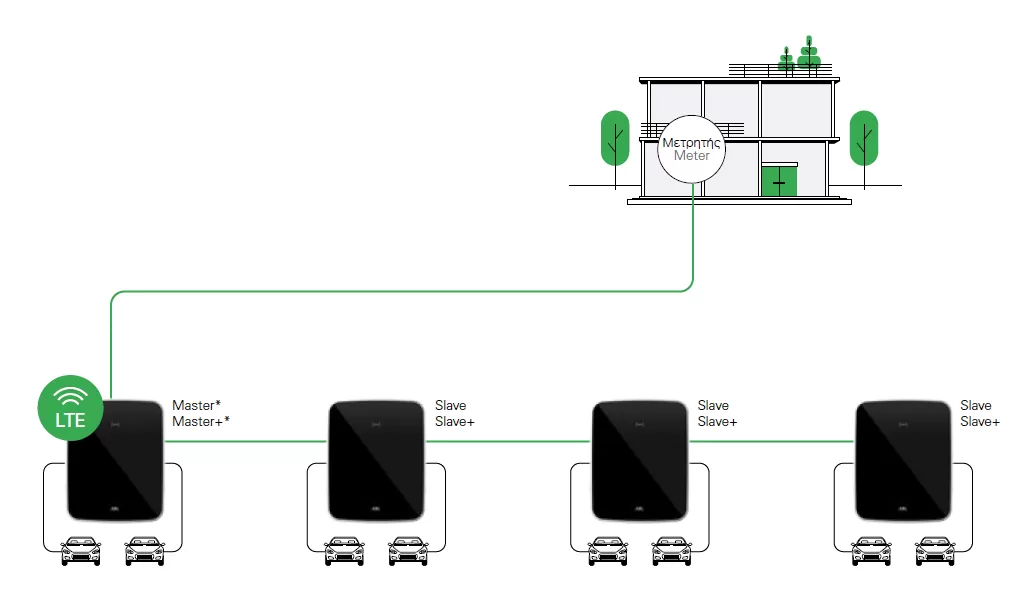

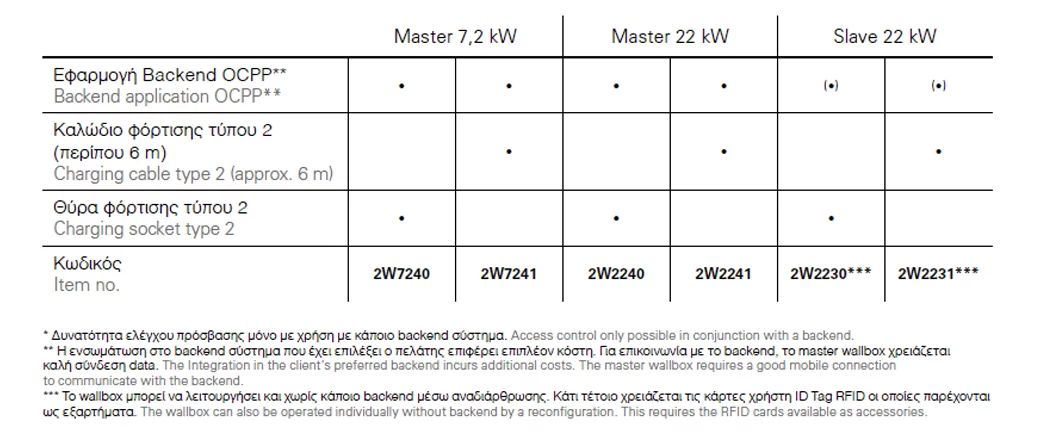

Αρχή Master-Slave

Max. 16 charging points (1 x Master and 7 x Slave), (1 x Master+ and 7 x Slave+)
SBC communication controller for controlling all wallboxes is integrated in the Master-Wallbox (features: load management, access control**,
back end application)
Billing is possible**
One MCB per wallbox required onsite in sub-dustribution
Master and Slaves also available as a single Wallbox eMH2 or eMH3
Advantage: All technical components are integrated

An example for backend and load management applications with an external control unit.*

Εξωτερική μονάδα ελέγχου

Max. 16 charging points (Slave)
SBC communication controller for controlling all wallboxes (features: load management, backend application, access control**)
One MCB per wallbox required onsite in sub-dustribution
Total theoretical charging capacity is max. 16 x 44kW
Advantage: Use in underground carpark

An example for backend and load management applications with an external control unit.*

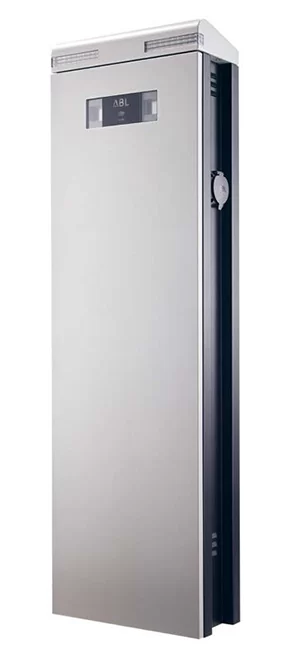

Charging Pole eMC2

Elegant, robust and safe

Our attractive charging pole eMC2 blends perfectly into any surroundings. Non-glare LED lights show the operating status of the pole, even from afar. Access is possible via RFID, SMS or app. The double powder-coated metal housing is dust and splash water proof. Rainwater can easily run off towards the back over the curved housing.

We offer two different plinths for installation. They are both designed to allow for the eMC2 to be easily anchored to any ground surface, so that the pole appears to be floating in the air. The triple-secured folding handle for opening the large front door is located at the side of the housing.

Charging Pole eMC2

with charging socket

All Charging Poles eMC2 have:

Overvoltage protection
Energy meter
RFID*
DC residual current monitoring
RCCB type A
MCB
Phase current measurement
Charging capacity 44 kW: 2 x 22 kW

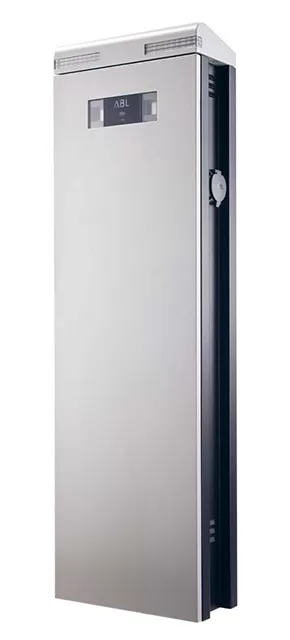

Charging Pole eMC3

for the public sector

ABL’s charging pole, the eMC3 for the public sector, meets all the requirements of the VDE-AR-N4100 standard and is compliant to German calibration law. The eMC3 effortlessly meets the protection class II, which is mandatory for public-area charging poles. Moreover, the required lineside meter fuse as well as the adapter for the electronic residential meters are integrated in the new housing. Of course, the eMC3 is equipped for communicating with a backend. Non-glare LED lights show the operating status of the charging pole, even from afar.

The double powder-coated metal housing is protected against dust and splashing water. Rainwater can easily run off towards the back over the curved housing. We offer a plinth for installation which is both designed to enable the eMC3 to be easily anchored to any ground surface, so that the pole appears to be floating in the air. The triple-secured folding handle for opening the large front door is located at the side of the housing and offers the safety needed for the public sector.

Charging Pole eMC3

with charging socket

All Charging Poles eMC3 have:

backend application OCPP
Lineside meter fuse
House connection box
Adapter for Electronic residential meter (eHZ)
Logging Gateway
Overvoltage protection
Energy meter
RFID*
RCCB type B
MCB
Phase current measurement
Charging capacity 44 kW: 2 x 22 kW

All Charging Poles eMC3 have:

backend application OCPP
Logging Gateway
Overvoltage protection
Energy meter
RFID**
RCCB type B
MCB
Phase current measurement
Charging capacity 44 kW: 2 x 22 kW

Accessories

Accessories wallboxes

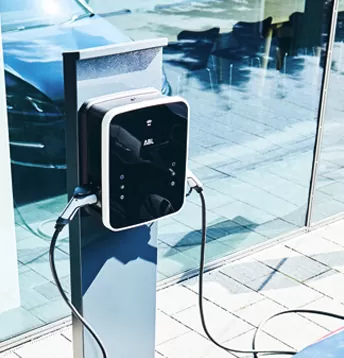

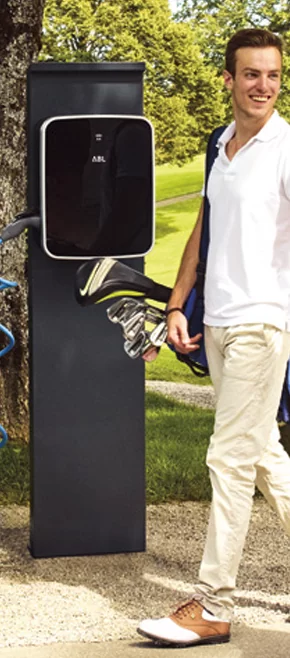

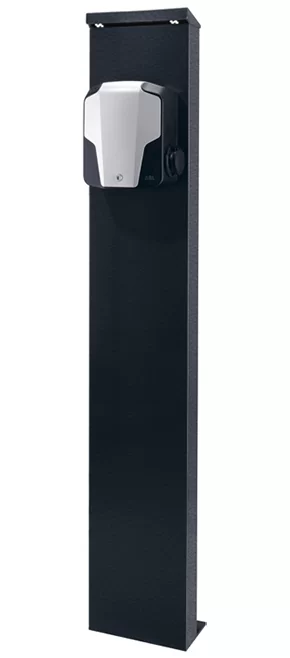

Pole* for Wallbox eMH1

Powder-coated metal pole with LED lights for all Wallboxes eMH1 · h = 1650, w = 285, d = 150 mm

* Pole without wallbox

Foundation for pole STEMH10 / STEMH30

Item No. EMH9999

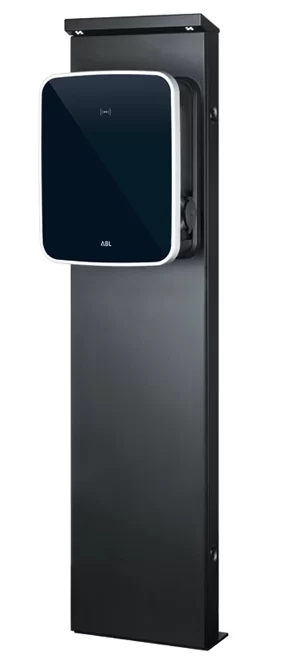

Pole* for Wallbox eMH3

Powder-coated metal pole with LED lights for all Wallboxes eMH3 · h = 1650, w = 400, d = 150 mm

* Pole without wallbox

Foundation for pole STEMH10 / STEMH30

Item No. EMH9999

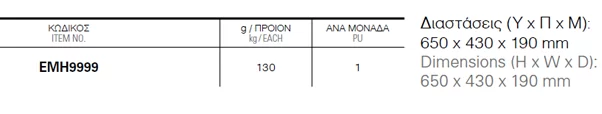

Foundation for pole STEMH10 / STEMH30

For ground installation, ABL offers the EMH9999 precast foundation block, which provides the necessary stability and security for the pole STEMH10 / STEMH30 and has an integrated tube to protect the power supply. The foundation block is made from grade C 30/37 concrete and complies with exposure classes XC4 and XF1. The mounting screws M12 V2A (4 pcs.) are included in the scope of delivery.

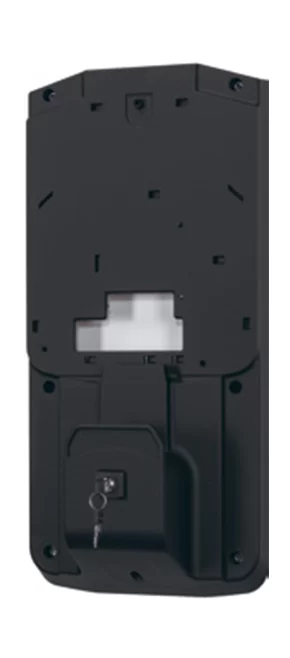

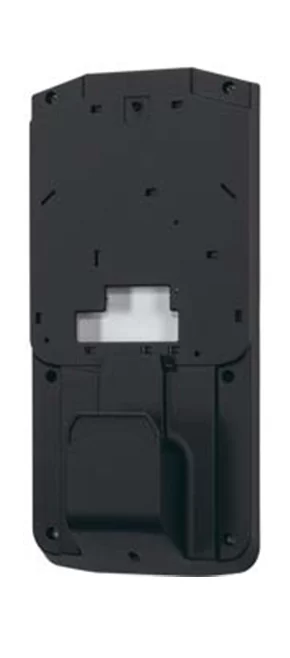

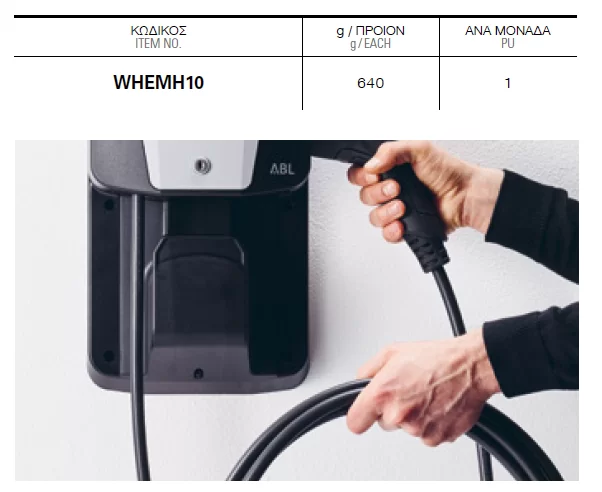

Bracket for Wallbox eMH1

with cable holder

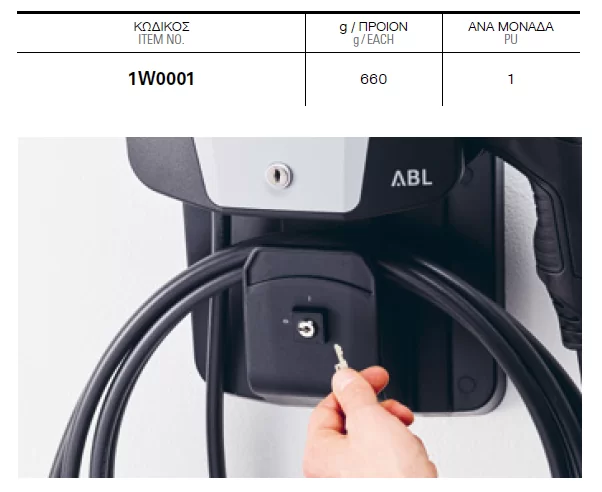

Bracket for Wallbox eMH1

cable holder with keyswitch

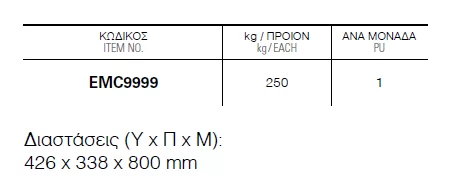

Foundation for charging pole eMC2/eMC3

For ground installation of the charging pole eMC2 / eMC3

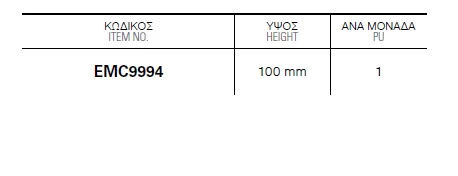

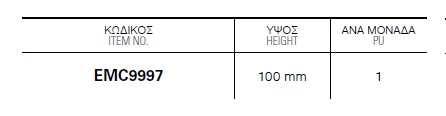

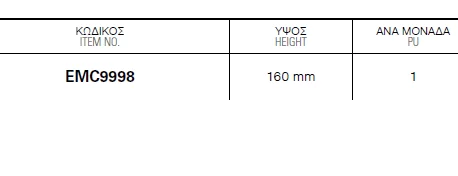

Plinth eMC2

For this plinth, the top of the foundation should be flush with the ground level.

Plinth eMC2

This plinth is intended for installation on a subsurface concrete foundation.

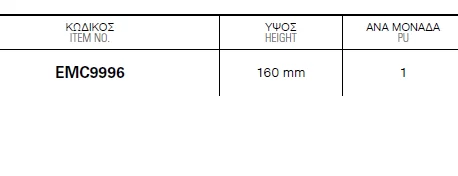

Plinth eMC3

For this plinth, the top of the foundation should be flush with the ground level.

Plinth eMC3

This plinth is intended for installation on a subsurface concrete foundation.

Εξαρτήματα για wallbox & στήλες φόρτισης

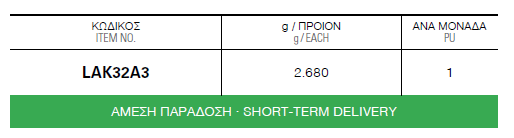

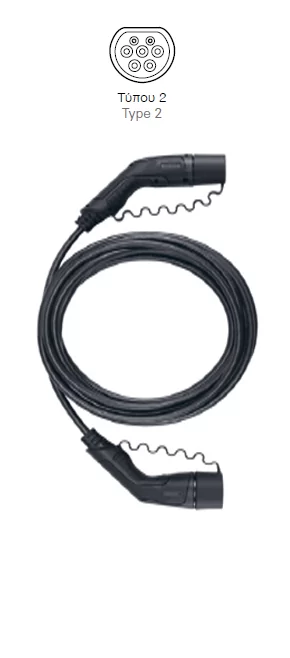

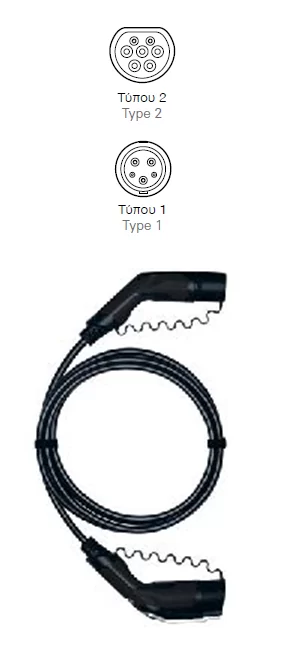

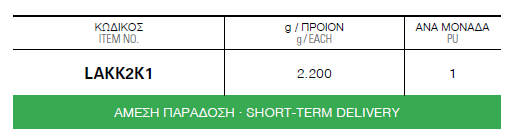

Charging cable type 2 – type 2

In acc. with IEC 62196-2 · 32 A 240/415 V AC · 3 ph · length approx. 4 m · splash-proof IP44

Charging cable type 2 – type 2

In acc. with IEC 62196-2 · 20 A 240/415 V AC · 3 ph · length approx. 7 m · splash-proof IP44

Charging cable type 2 – type 1

32 A 230 V AC · length approx. 4 m · 1 ph · splash-proof IP44

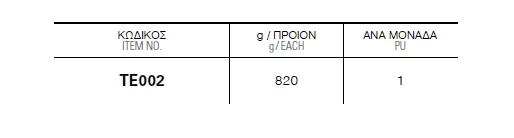

EVSE adapter

Vehicle simulation adapter according to IEC 61851 for testing the function and electrical safety of the charging stations. Auto sequence tests by pushing only one button. Suitable for initial tests and retests of charging stations in conjunction with the installation tester.

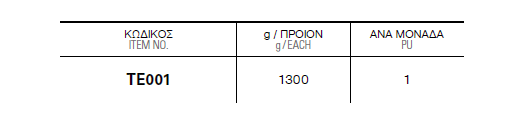

Installation tester

Multifunctional measuring instrument for the installation safety testing acc. to IEC/EN 61557. This includes Auto sequence testing and automatic creation of test reports. Suitable for TN, TT and IT earthing systems. For initial tests and retests of charging stations. The EVSE adapter is necessary for the testing of charging stations.

Master-Slave installation kit

for the configuration of the LGW, charge controller, meter and RFID module virtual COM-Port · USB: Type B RS485: RJ12 incl. 2 connecting cables, 2 adapter cable RS485 and software

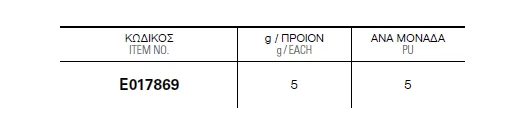

RFID card set (5 pieces)

in ABL design for all charging stations with RFID
